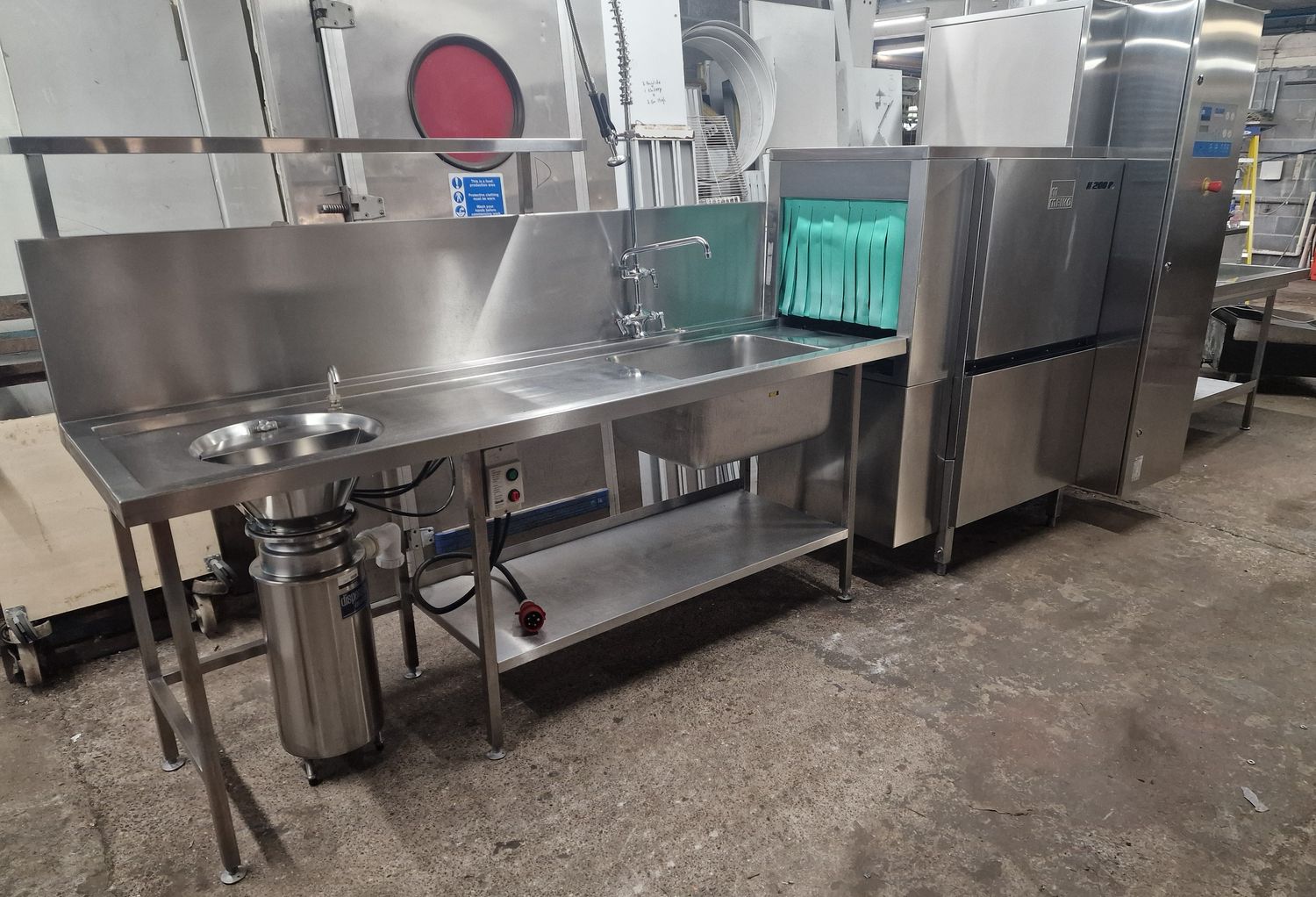

MEIKO K-200 K-Tronic Rack Conveyor Dishwasher Setup

MEIKO K-200 K-Tronic Rack Conveyor Dishwasher in lovely condition and excellent working order. This is the complete setup,

Left loading with waste disposal unit and pre rinse sink

Right exiting roller table with end cut off switch

Extractor Hood also Included.

400v - 31kw - 48amps

Will need a chemical dosing system and water softener if required for your area.

Overall length of setup - 5550mm

Capacity 240 racks per hour

Water consumption 0.35 gallons (1.34 liters) per rack

304-series stainless steel construction

Double-wall insulated construction on front, top and back

to improve operator safety, conserve heating energy, and

reduce noise and heat loss into the dish room

Improved side-drive system ensures complete water

coverage from every angle, even the bottom of the rack,

while reducing jerking motions that can shift ware

Large, easily-removed pan strainer

Large, insulated front door(s) are spring-loaded to open

easily and STAY open, without latching

Optimally-positioned wash arms in easily-removed

assemblies. Arms and assemblies are stainless steel,

eliminating high-wear gaskets and O-rings. Nozzles are

slotted and concave to minimize clogging

Front-sloping tanks for easier cleaning. External, foot lever drain system makes draining fast, safe and simple

Powerful 3hp (2.2 kW) wash pump is 50% more powerful

than the industry standard for outstanding cleaning ability.

Pump motor is vertically-mounted to be self-draining and

easily removed for servicing

Easily accessible detergent and rinse aid injection ports

for fast and easy chemical dispenser installation

Single-point drain connection

Single-point powered vent connection

Low-level heater protection

External vent fan control

3 Phase power required.

All our used items have been serviced, cleaned and fully tested by our in-house engineers

5550mm Wide

mm Deep

mm High

£6995.00 (Includes 20% VAT)

This item can be viewed at our showrooms in Swansea and can be seen working!
